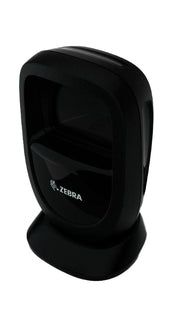

Zebra DS9308-SR Fixed bar code reader 1D/2D LED Black

★ ★ ★ ★ ★ View All Reviews

SKU: DS9308-SR4U2100AZE

Category: Barcode Readers, Printers

Brand:Zebra

Key Features

  • 1D and 2D barcode scanning (including QR, Data Matrix, PDF417)
  • High-resolution imager: 1280 × 800 pixels
  • Fast motion tolerance with wide pitch and tilt angles
  • Interfaces: USB, RS-232, Keyboard Wedge
  • Compact and lightweight design (~318 g)
  • IP52 sealing: dust and spill resistant
  • Operating temperature: 0° to 50° C
  • Storage temperature: –40° to 70° C
  • Humidity: 5% to 95% non-condensing
Condition: New
Ex Vat: £145.50
£174.60 Inc Vat
Shipping: Free - UK Mainland
In Stock
Quantity:
- +
Guaranteed safe checkout:
Payments
Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Working distance 66 cm
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -60 - 60°
Light levels (direct sunlight) 0 - 107700 lx
Optical sensor resolution (W x H) 1280 x 800 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232, USB
Performance
International Protection (IP) code IP52
Product colour Black
Certification EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Light levels (direct sunlight) 0 - 107700 lx
Design
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Certification EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Power
Power source type RS-232, USB
Input voltage 5.5 V
Weight & dimensions
Width 86 mm
Depth 83 mm
Height 145 mm
Weight 318 g
Technical details
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Certification EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
Harmonized System (HS) code 84716070
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Light levels (direct sunlight) 0 - 107700 lx
Logistics data
Harmonized System (HS) code 84716070

Key Features

  • 1D and 2D barcode scanning (including QR, Data Matrix, PDF417)
  • High-resolution imager: 1280 × 800 pixels
  • Fast motion tolerance with wide pitch and tilt angles
  • Interfaces: USB, RS-232, Keyboard Wedge
  • Compact and lightweight design (~318 g)
  • IP52 sealing: dust and spill resistant
  • Operating temperature: 0° to 50° C
  • Storage temperature: –40° to 70° C
  • Humidity: 5% to 95% non-condensing
